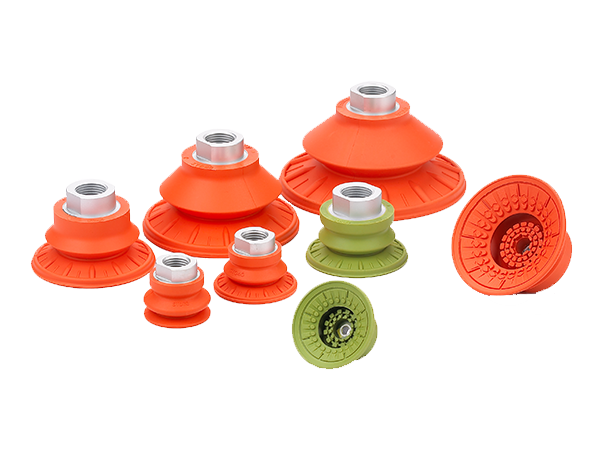

Features
◇ Large inner support structure protects the metal sheets from deformation and damage during handling process.
◇ Slot structure efficiently increases the friction force between vacuum pad and workpiece in order to prevent the oily
metal sheets from slipping during the handling process.
◇ 1.5 Bellows structure has good sealing and buffer to workpiece with uneven surface
Applications
◇ Car stamped steel plate with irregular shapes, oily steel plate.
◇ Glass, stamping parts, plywood
◇ Handling normal sheet metal (to avoid deformation)
| How to order | |||||||
| STC 22 N -G2F ① ② ③ ④ | |||||||
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread | ||||
| STC | 22 - φ22mm 30 - φ30mm 40 - φ40mm 50 - φ50mm 60 - φ60mm 80 - φ80mm 100 - φ100mm 125 - φ125mm | N - NBR | G2F - Gl/4 Female thread G2M - Gl/4 Male thread G3F - G3/8 Female thread M10M - M10 Male thread M14M - M14X1.5 Maleth read RA - Rectangular adapter | ||||
| Selection | ||||||
| Model/ Connection thread | G2M | G2F | G3F | M10M | M14M | RA |
| STC22 - 40 | ○ | ● | - | ○ | ○ | ○ |
| STC50 - 125 | ○ | - | ● | ○ | ○ | ○ |
◇Note: "●"- standard, in stock. "○"-selective,no stock."—"-unavailable.

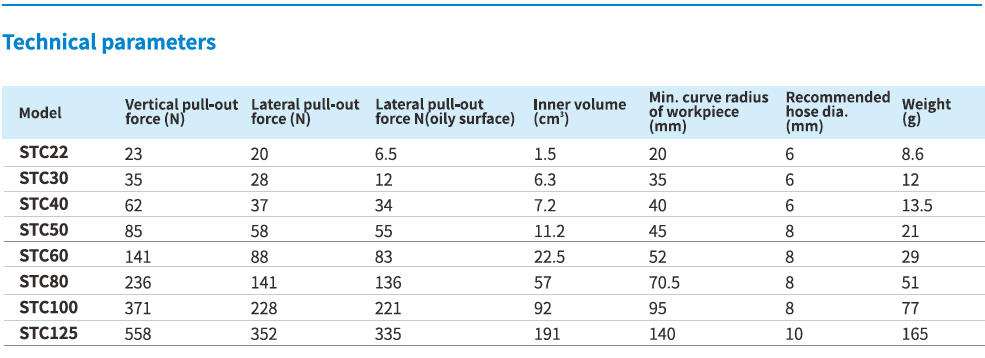

◇Note: Testing vacuum level -60kPa.Workpiece with smooth and clean surface. The data of pull-out force as above are figured out without considering safety factor.
The data may be different according to different workpiece surfaces.

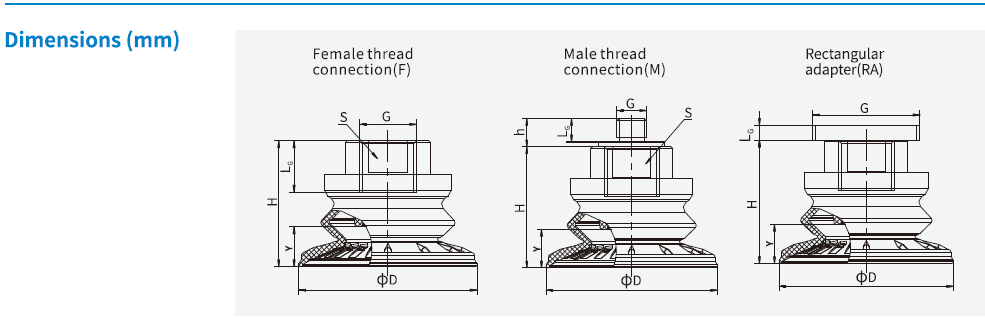

| Model/ Size | D | H | G | LG | h | S | Y |
| STC22-G2M | 22 | 25 | G1/4 | 12 | 13.5 | 16 | 5.5 |
| STC22-G2F | 22 | 25 | G1/4 | 11 | - | 16 | 5.5 |
| STC22-M10M | 22 | 25 | M10 | 12 | 13.5 | 16 | 5.5 |
| STC22-M14M | 22 | 25 | M14×1.5 | 12 | 13.5 | 16 | 5.5 |
| STC22-RA | 22 | 25 | □32 | 4.7 | - | - | 5.5 |
| STC30-G2M | 32 | 28 | G1/4 | 12 | 13.5 | 17 | 9.5 |
| STC30-G2F | 32 | 28 | G1/4 | 11 | - | 17 | 9.5 |
| STC30-M10M | 32 | 28 | M10 | 12 | 13.5 | 17 | 9.5 |
| STC30-M14M | 32 | 28 | M14×1.5 | 12 | 13.5 | 16 | 9.5 |
| STC30-RA | 32 | 28 | □32 | 4.7 | - | - | 9.5 |
| STC40-G2M | 42 | 28.5 | G1/4 | 12 | 13.5 | 17 | 10 |
| STC40-G2F | 42 | 28.5 | G1/4 | 11 | - | 17 | 10 |
| STC40-M10M | 42 | 28.5 | M10 | 12 | 13.5 | 17 | 10 |
| STC40-M14M | 42 | 28.5 | M14×1.5 | 12 | 13.5 | 17 | 10 |
| STC40-RA | 42 | 28.5 | □32 | 4.7 | - | - | 10 |
| STC50-G2M | 52 | 37 | G1/4 | 12 | 13.5 | 22 | 11.5 |
| STC50-G3F | 52 | 37 | G3/8 | 13 | - | 22 | 11.5 |
| STC50-M10M | 52 | 37 | M10 | 12 | 13.5 | 22 | 11.5 |
| STC50-M14M | 52 | 37 | M14×1.5 | 12 | 13.5 | 22 | 11.5 |
| STC50-RA | 52 | 37 | □32 | 4.7 | - | - | 11.5 |
| STC60-G2M | 62.5 | 41 | G1/4 | 12 | 13.5 | 22 | 14.5 |
| STC50-G3F | 62.5 | 41 | G3/8 | 13 | - | 22 | 14.5 |
| STC50-M10M | 62.5 | 41 | M10 | 12 | 13.5 | 22 | 14.5 |
| STC50-M14M | 62.5 | 41 | M14×1.5 | 12 | 13.5 | 22 | 14.5 |
| STC50-RA | 62.5 | 41 | □32 | 4.7 | - | - | 14.5 |
| STC80-G2M | 82 | 50.5 | G1/4 | 12 | 13.5 | 22 | 22.5 |
| STC50-G3F | 82 | 50.5 | G3/8 | 13 | - | 22 | 22.5 |
| STC50-M10M | 82 | 50.5 | M10 | 12 | 13.5 | 22 | 22.5 |
| STC50-M14M | 82 | 50.5 | M14×1.5 | 12 | 13.5 | 22 | 22.5 |
| STC50-RA | 82 | 50.5 | □32 | 4.7 | - | - | 22.5 |
| STC100-G2M | 102.5 | 56 | G1/4 | 12 | 13.5 | 22 | 25 |
| STC100-G3F | 102.5 | 56 | G3/8 | 13 | - | 22 | 25 |
| STC100-M10M | 102.5 | 56 | M10 | 12 | 13.5 | 22 | 25 |
| STC100-M14M | 102.5 | 56 | M14×1.5 | 12 | 13.5 | 22 | 25 |
| STC100-RA | 102.5 | 56 | □32 | 4.7 | - | - | 25 |
| STC125-G2M | 128 | 68 | G1/4 | 12 | 13.5 | 22 | 32 |
| STC100-G3F | 128 | 68 | G3/8 | 13 | - | 22 | 32 |
| STC100-M10M | 128 | 68 | M10 | 12 | 13.5 | 22 | 32 |
| STC100-M14M | 128 | 68 | M14×1.5 | 12 | 13.5 | 22 | 32 |
| STC100-RA | 128 | 68 | □32 | 4.7 | - | - | 32 |
